Plastic Road Reflectors Reflective Studs On Motorway NK-1003
Plastic Road Reflectors Reflective Studs On Motorway NK-1003
Plastic Road Reflectors Reflective Studs On Motorway NK-1003
Plastic Road Reflectors Reflective Studs On Motorway NK-1003
Plastic Road Reflectors Reflective Studs On Motorway NK-1003
Plastic Road Reflectors Reflective Studs On Motorway NK-1003
Plastic Road Reflectors Reflective Studs On Motorway NK-1003
Plastic Road Reflectors Reflective Studs On Motorway NK-1003

Plastic Road Reflectors Reflective Studs On Motorway NK-1003

Body material: ABS
Reflector type: Double side/Single side
Lens Material: PMMA
Colors: White, Red, Yellow, Green, Blue
Size: 116*82*18mm

Product Description

Reflective studs on motorway are safety devices used on roads. These devices are usually made of plastics, ceramics, thermoplastic coatings or occasionally metal, and come in a variety of shapes and colors. Reflective studs on motorway include lenses or reflective sheets, which enhance visibility by reflecting automobile headlights. Some other names for specific types of reflective studs include convex vibration lines, Botts’ dots, contour lines, cat’s eyes, road studs or road turtles. Sometimes they are simply referred to as “reflectors”.

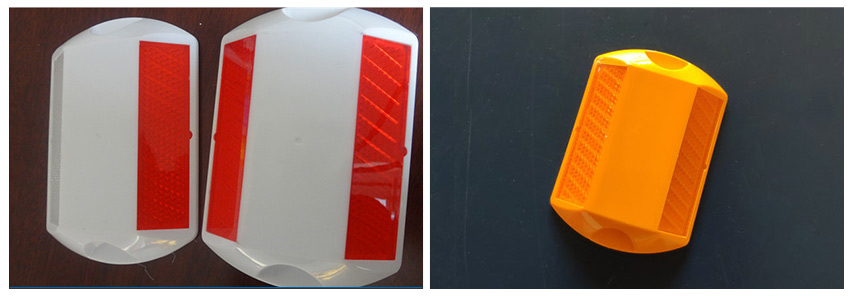

Plastic Road Reflectors Reflective Studs

Reflective studs on motorway are one of raised pavement markers. Reflective studs on motorway is used for dividing the road boundary,for safety,reducing the accidents,made from aluminium alloy attached with the reflective sheet made from the acrylic plastic sheet.This acrylic is a reflective prism glass style and available 1 or 2 sides on road stud. In addition,there will be thin layer of the coated glass in order to enhance the reflective index during night time.



The specifications of Reflective studs on motorway:

 Body material   ABS
 Size   116*82*18mm
 Lens Material   PMMA
Reflector type:    Double side/Single side
 Color   Red, Yellow, Green, Blue, White
 Packing   50pcs/carton
 Carton size   38*36*23cm
 Load capacity   15Tons



Amber Reflective Road Studs application



Whats the different color Reflective studs mean on the motorway?

Red studs- mark the left edge of the road.

White studs- mark the lanes or the middle of the road.

Amber studs- mark the central reservation of a dual carriageway or motorway.

Green studs- mark the edge of the main carriageway at lay-bys and slip roads

Green/yellow- studs indicate temporary adjustments to lane layouts, e.g. where road works are taking place.
