Home » Products » Aluminium Raised Pavement Marker Motorway Slip Road Studs NK-1004

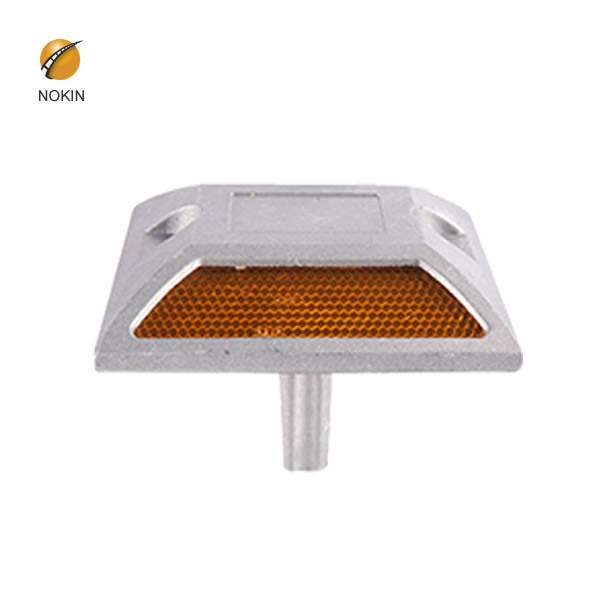

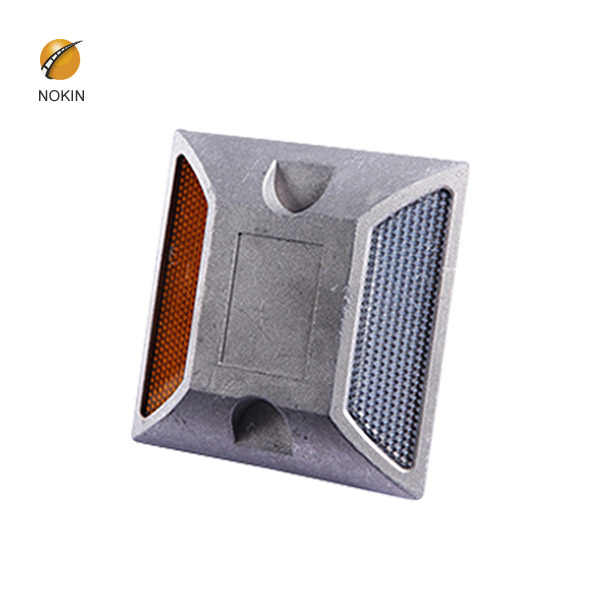

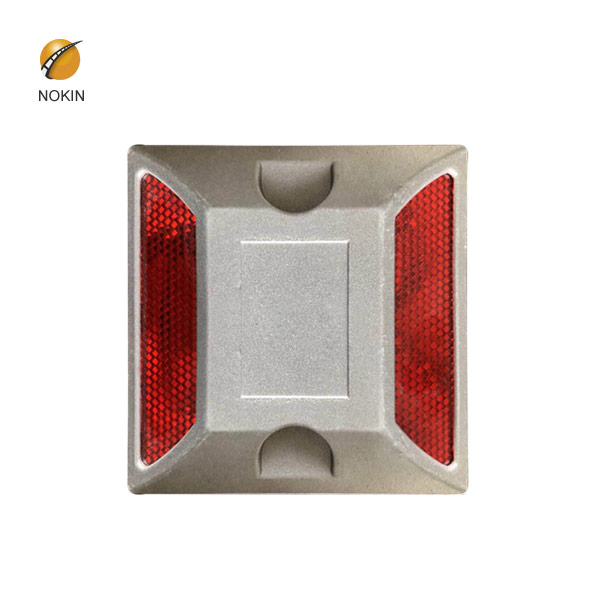

Aluminium Raised Pavement Marker Motorway Slip Road Studs NK-1004
Aluminium Raised Pavement Marker Motorway Slip Road Studs NK-1004
Aluminium Raised Pavement Marker Motorway Slip Road Studs NK-1004
Aluminium Raised Pavement Marker Motorway Slip Road Studs NK-1004
Aluminium Raised Pavement Marker Motorway Slip Road Studs NK-1004
Aluminium Raised Pavement Marker Motorway Slip Road Studs NK-1004
Aluminium Raised Pavement Marker Motorway Slip Road Studs NK-1004
Aluminium Raised Pavement Marker Motorway Slip Road Studs NK-1004

Aluminium Raised Pavement Marker Motorway Slip Road Studs NK-1004

Body material: Aluminium
Filling: Epoxy+Quartz
Lens Material: PMMA
Colors: White, Red, Yellow, Green, Blue
Size: 100*100*20+50mm

Product Description

Motorway slip road studs are safety devices used on roads. These devices are usually made of plastics, ceramics, thermoplastic coatings or occasionally metal, and come in a variety of shapes and colors. Motorway slip road studs include lenses or reflective sheets, which enhance visibility by reflecting automobile headlights. Some other names for specific types of raised pavement markers include convex vibration lines, Botts’ dots, contour lines, cat’s eyes, road studs or road turtles. Sometimes they are simply referred to as “reflectors”.

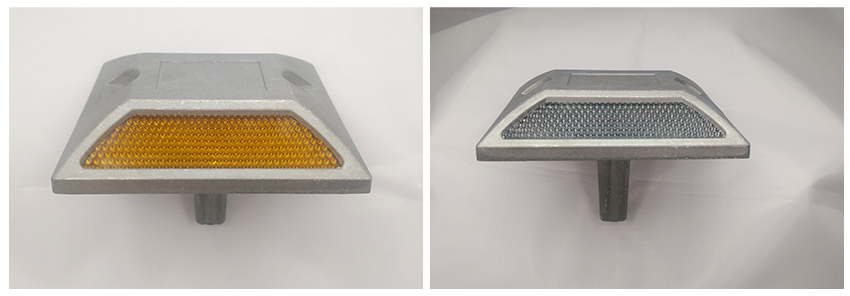

Aluminium Raised Pavement Marker Motorway Slip Road Studs



Motorway slip road studs are one of raised pavement markers. Motorway slip road studs on motorway is used for dividing the road boundary,for safety,reducing the accidents,made from aluminium alloy attached with the reflective sheet made from the acrylic plastic sheet.This acrylic is a reflective prism glass style and available 1 or 2 sides on road stud. In addition,there will be thin layer of the coated glass in order to enhance the reflective index during night time.



The specifications of Motorway slip road studs:

  Model No.   NK-1004
  Color   Red, Yellow, Green, Blue, White
  Lens Material   PMMA
  Body Material   Aluminium
  Filling   Epoxy+ Quartz Sand
  Size   100*100*20+50mm
  Temperature   -40~60°C
  Load capacity   5 T
  Packing   50 pcs / ctn
  Life span   >3 years
  Certificates   ASTM & EN1463-1



Amber-Reflective-Pavement-Markers-4



Whats the different color slip road studs mean on the motorway?

Red studs- mark the left edge of the road.

White studs- mark the lanes or the middle of the road.

Amber studs- mark the central reservation of a dual carriageway or motorway.

Green studs- mark the edge of the main carriageway at lay-bys and slip roads

Green/yellow- studs indicate temporary adjustments to lane layouts, e.g. where road works are taking place.
